Each thermostat can control up to three (3) 475 watt envi wall mounted heaters.

These thermostats are equipped with an electronic controller to send only the right amount of power required by the heating system to maintain the desired temperature. This state-of-the-art technology offers the smallest temperature variations and eliminates any feeling of discomfort !

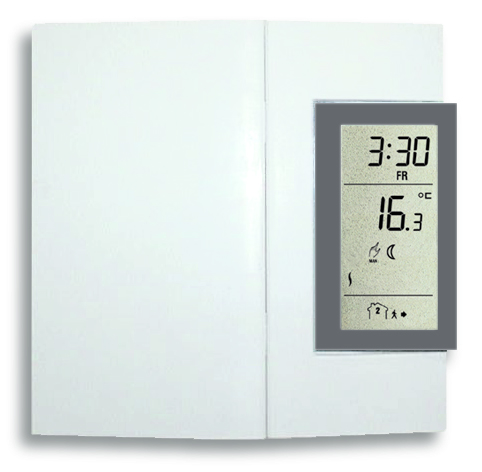

Aside from providing unparalelled comfort, the TH106 is equipped with a telephone controller input, flexible programming to accomodate all types of schedules, a large and legible LCD screen as well as clearly identified buttons.

Features:

LOAD: 2000 watts @ 120 volts (4000 watts @ 240 volts) 16,7 A resistive load 250 watts min. (2A) (500 watts min on 240 volts)

TEMPERATURE VARIATION: 0.15 °C (0.3 °F)

REGULATION: Proportional controller, 20 second cycles*

OPERATING MODES: Manual Automatic with temporary bypass Telephone controller input**

PROGRAMMING: 4 settings / day Each day can have different setbacks Early start function*** Temperature memory****

PROTECTION: Protected memory No battery required CONNECTION: Single pole, 2 wires SIZE: 38 x 127 x 125 mm 1,5 x 5 x 4,9 inches

* : This thermostat is equipped with a micro processor that analyses the system's past performances in order to optimize future commands. At the beginning of each cycle, the system sends a command that defines the portion of time the unit is heating during the next cycle.

** : Allows, through the telephone controller CT240, switching from normal operating mode (Manual or Auto) to Vacation mode, or vice-versa.

*** : Function that calculates the optimum time to start the heating system to achieve the desired temperature setting at the programmed time.

**** : The user can enter a daytime, night-time and vacation time temperature.
