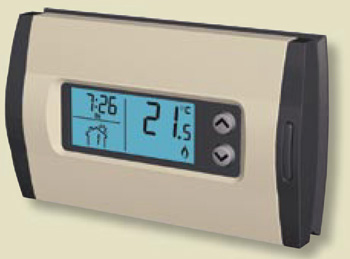

The TH148 is primarily used for central heating /cooling systems, to increase efficiency and accuracy of temperature control. The unit has an input for telephone controller CT-240. These low voltage thermostats can also be used to hardwire envi wall mounted heaters if wired to a seperate 24volt/120volt relay. The relay is then hard wired to as many heaters as the relay has capacity for. If the relay is a 22amp relay then up to six (6) envi wall mounted heaters can be controlled. Each thermostat incorporates two types of regulation: proportional adaptive and conventional, and the heating cycles are programmable. The telephone controller input feature allows users to control their heating while they are away. These very easy to use thermostats are perfectly suited to the residential, commercial and institutional markets. For optimal comfort and maximum energy saving!

Features:

LOAD: Resistive 1 A @ 24 V

REGULATION: Adaptive controller Cycles: selectable 2 to 6 cycles/hour

OPERATING MODES: Manual/Auto/Vacation; Temporary bypass; Telephone controller input

PROGRAMMING: 4 Temperature Settings per Day; Different settings each day

PROTECTION: Low battery indicator

INSTALLATION: with wall plate; 2,3,4 or 5 wires connection *

SIZE: 3 x 5 x 1 inche (75 x 127 x 28mm)

*Compatible with single-stage heating and cooling or millivolt systems. For gas, oil or electric furnaces & air conditioning
