Envi Heater Installation Instructions

WALL MOUNTING

Remove the heater, mounting kit, and packaging insert frame from the box. Keep the packaging materials for future use.

img-step-1 Fig. 1

Step 01

Unwrap and flatten the sides of the packaging insert frame (mounting template) and stand the template on the floor. The sides of the template have pre-punched holes to mark the heater mounting height for either 6” or 8” (15 or 20cm) from the bottom of the heater to the floor. Choose either mounting height, and mark three hole locations on the wall. (see Fig. 1). The top two hole locations are for the mounting clips and the bottom location is for a third mounting screw hidden inside the bottom access door as described in step 5 below.

NOTE: Most installers use the internal locking bar screw ONLY instead of the bottom mounting hole.

Step 02

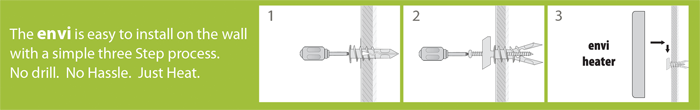

Screw the anchors (Fig. 2) into wall at the marked locations. The distance from the top screws to the floor should be approx. 19” to 21” (48cm to 53cm). If a stud is in the way, do not use the drywall anchor supplied, just drive supplied mounting screw directly into the stud. For masonry walls, use the masonry wall anchors provided and drill a 4.5mm (3/16inch) hole using a masonry drill bit (not supplied).

img-step-2 Fig. 2
img-step-3 Fig. 3

Step 03

Screw the two mounting clips (with arrow pointing upward) into the top two anchor locations and secure firmly to the wall anchors using the provided screws. (see Fig. 3). DO NOT overtighten. There should be a gap behind the mounting clip to hang the heater on.

img-step-4 Fig. 4

Step 04

Note: make sure you pre-install the Locking bar screw before you mount the heater. (See Fig. 4 below). Install heater on mounting clips (align right side first) and make sure to press down firmly on the heater to ensure a secure fit. You will hear it “snap” into place. (Fig. 5 above)

Installing Locking Bar for Permanent Attachment

Envi Wall-Mounted Heaters have an additional method to permanently attach the heater to the wall. A locking bar mechanism is built inside the heater, which is engaged by screwing an external locking screw into the bottom of the heater vent.

The locking screw and Hex/Allen Key are both provided in the mounting kit. This locking bar method is an alternate method to the existing bottom screw installation procedure above, however many customers will find that the locking bar attachment method is sufficient by itself.

image-step-1 Fig.5

Step 01

Installing the Locking Bar Screw (Fig. 5)

BEFORE YOU MOUNT THE HEATER TO THE WALL. Take the locking bar screw out of the mounting kit and while the heater is laying flat, use the Hex/Allen key provided to pre-install the screw in the hole at the left hand side of the bottom vent (Fig. 5). Twist the locking screw in about 3/8 of an inch but make sure you do not screw it in too far as it will obstruct the mounting holes at the back of the heater and prevent secure mounting.

Step 02

Mount the Heater.

Attach the heater to the wall by following the rest of the mounting instructions on previous page.

image-step-1 Fig.5

Step 03

Tighten Locking Screw (Fig. 5)

Follow the rest of the mounting instructions to ensure the heater is properly seated on the mounting clips and then tighten the locking screw to fix the heater to the wall. DO NOT USE A POWER TOOL! DO NOT OVERTIGHTEN, just turn the screw until the locking bar presses gently up against the left hand mounting clip inside the heater.

Troubleshooting

If the heater will not operate, please check the following before calling for help with technical questions:

Step 01

The number one troubleshooting tip is to check that the internal, electrical safety switch (Wall-SensTM) is being engaged. The heater WILL NOT OPERATE AT ALL if this switch is not engaged. This problem occurs when the right hand side of the heater is not pushed down far enough between the gap between the wall and the mounting clip. The mounting clip can become squished if it is screwed in too hard. Uneven walls can also cause the same mounting/wall switch problems.

Step 02

Check if the power cord is plugged into an electrical outlet and the heater is set to ON by confirming the light on the front of the panel is lit. If not, plug in the heater and press the on/off power button.

Step 03

If the heater has been hardwired, consult an electrician to check that all connections have been made correctly. Make sure that you hardwire the correct voltage. Many people do not understand how to work with 220volt wiring. Always triple check the voltage and the model heater that was purchased as this is a common mistake and can lead to heater malfunction and pose a serious safety risk.

Step 04

Check if there is electricity to the circuit by checking to make sure the breaker in the breaker box is in the “on” position.

Specifications & Certifications

PRODUCT SPECIFICATIONS

Power Rating: 500 Watts (All Models)
Volt & Amp Rating: LE5012D/N Models = 4.17 Amps @ 120volts
LE5022D/N Models = 2.27 Amps @ 220volts
Unit Size: 19.3in W x 2.2in D x 2.27in H
(49.0cm W x 5.6cm D x 56.4cm H)
Net Weight: 10 lbs (4.5 kg)
Packaged Weight: 12 lbs (5.5 kg)

SAFETY LISTINGS

Conforms to UL Std: UL 2021
Cert. to CAN/CSA Std: C22.2 No. 46
Conforms to IEC Std: 60335-1 & 60335-2-30
Conforms to AS/NZS: 60335.1 & 60335.2.30
